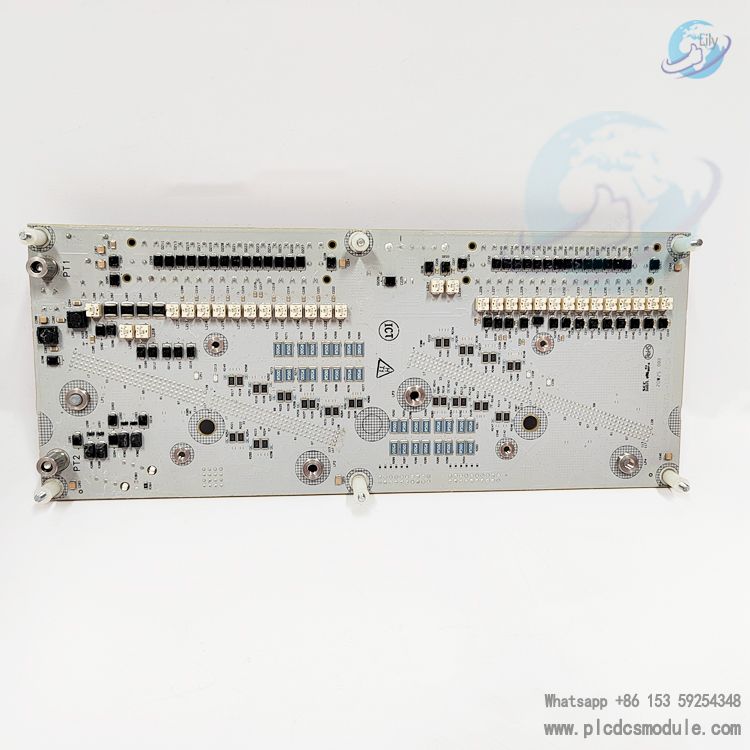

The Honeywell CC-PUIO31 51454220-176 C-Series General Purpose I/O Module is a versatile input/output device designed for use with the Experion PKS Distributed Control System (DCS). The module interfaces with a variety of field devices including analog inputs, analog outputs, digital inputs, and digital output devices. It is known for its user-configurable channels, allowing each channel to be set as an analog input, analog output, digital input, digital output, or pulse input. It also supports open-circuit detection, electronic short-circuit protection, fast scanning (priority I/O module scanning), safe state behavior for configurable digital/analog outputs on a per-channel basis, HART 7 support for analog I/Os, and an extended ambient temperature range of the module from -40 to +70°C.
The UIO (CC-PUIO31) module is introduced with R432 and has 32 configurable input or output channels that are identical to the UIO (CC-PUIO01) module.
Key features and specifications of the CC-PUIO31 51454220-176 C-Series general purpose IO modules include:
User Configurable Channels: Allows flexibility in configuring the module according to the specific needs of the application.
Support for various types of inputs and outputs: Includes analog, digital, and pulse inputs to meet a wide range of field device requirements.
Protection Features: Provides electronic short-circuit protection to withstand field short circuits without damaging the module or affecting other channels.
Fast Scan Feature: Enhances system responsiveness with prioritized I/O module scanning.
Safe State Behavior: Digital and analog outputs can be configured on a per-channel basis for increased safety and control.
HART 7 Support: Provides advanced communication capabilities for analog I/O devices.
Extended Temperature Range: Operates over a wide temperature range to ensure reliable performance in a variety of environmental conditions.

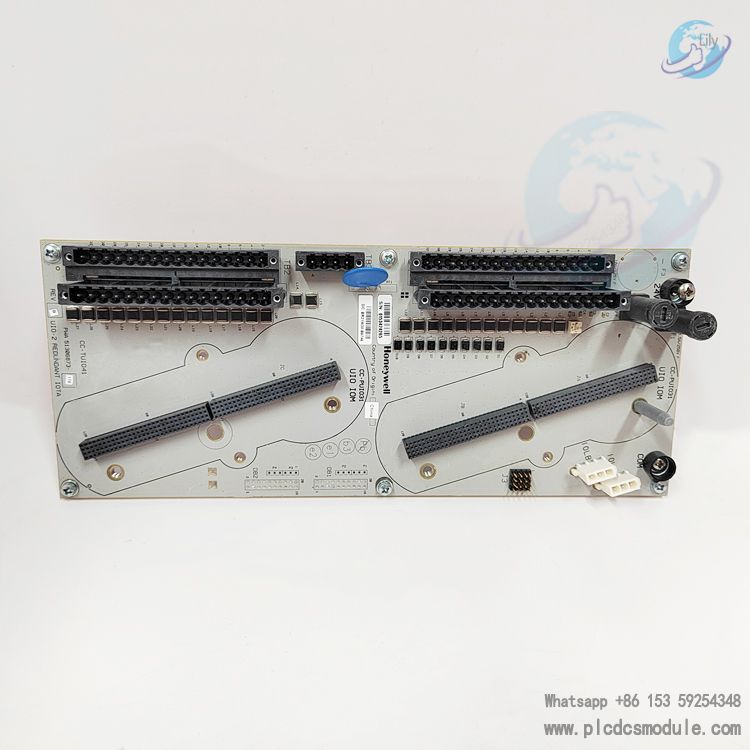

Redundancy options: Available in non-redundant (CC-TUIO31) and redundant (CC-TUIO41) versions for enhanced system reliability and availability.
There are other modules that can be used together with the Honeywell CC-PUIO31, such as the FS-TSDO-0824 digital output connection module with digital output function. If the system requires data monitoring and centralized management, then the upper computer monitoring system conducts data interaction with the CC-PUIO31 through communication protocols such as Modbus RTU to achieve real-time monitoring and remote control of field devices.
