5SHY4045L0006 ABB Insulated Gate Bipolar IGBT Thyristor Module

5SHY4045L0006 IGBT is the English word Insulated Gate Bipolar Transistor, which means insulated gate bipolar transistor in Chinese. Functionally, IGBT is a circuit switch, the advantage is to use voltage control, small saturation voltage drop, high withstand voltage

5SHY4045L0006 used in the voltage tens to hundreds of volts magnitude, current tens to hundreds of amps magnitude of strong electricity.

 And IGBTs do not use mechanical buttons, they are controlled by computers. So with IGBTs as switches, it is possible to design a type of circuit that, through computer control of the IGBTs, turns AC power on the power side into DC power of a given voltage, or various kinds of power into AC power of the required frequency for use by the load.

 IGBT modules are energy-saving, easy to install and maintain, and have stable heat dissipation; currently, most of the products sold on the market are modular products of this type, and the term IGBT also refers to IGBT modules; with the promotion of energy conservation and environmental protection, such products will become more and more common in the market; IGBT 5SHY4045L0006 is the core device for energy conversion and transmission GBTs are the natural evolution of the vertical power MOSFET for strong current, high voltage applications and fast end devices.

Since achieving a high breakdown voltage BVDSS requires a source-drain channel that has a high resistivity, resulting in power MOSFETs with high RDS(on) values, IGBTs eliminate these major drawbacks of existing power MOSFETs. Although the new generation of power MOSFET devices has substantially improved the RDS(on) characteristics, the power conduction losses at high levels are still much higher than with IGBT technology.

The lower voltage drop, the ability to convert to a low VCE(sat) and the IGBT construction support higher current densities compared to a standard bipolar device.

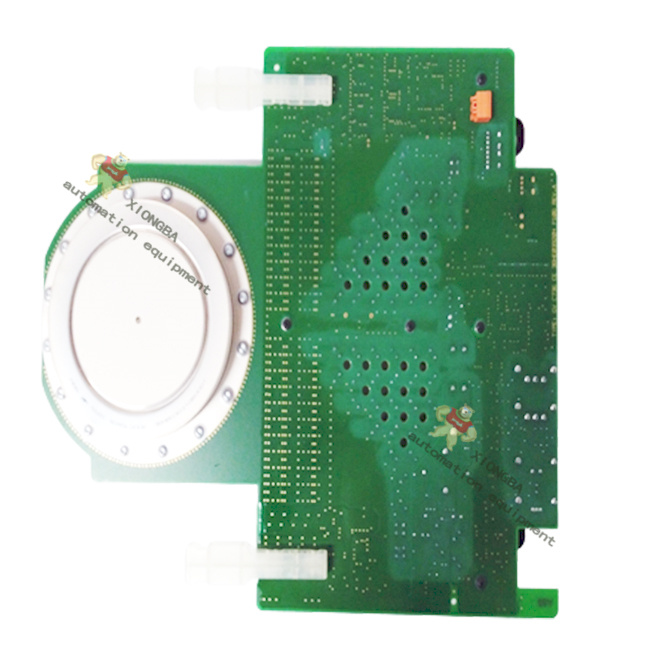

5SHY4045L0006

Product Code：3BHB030310R0001

ABB model name: 4500V, 91mm, 5SHY 4045L0006

Catalogue Note: 4500V, 91mm, 5SHY 4045L0006; IGCT Module

Description: 4500V, 91mm, 5SHY 4045L0006
